Lunch & Learn: Hydraulic Loops, Accessories & Pumping Arrangements

Feb 2025 – Mar 2025 · VR Mechanical Solutions
Hydronic Systems Pumping Systems HVAC Presenting
Title slide of the Lunch & Learn: Hydraulic Loops, Accessories & Pumping Arrangements

Overview

I developed and presented a hybrid Lunch & Learn, along with a mechanical design engineer (P.Eng.), for the Engineering and Construction teams (30 people) on top of my regular internship work. The session supported ongoing professional development, introduced practical hydronic HVAC concepts, and encouraged cross-team collaboration, with people attending both in person and by call.

Topics

Hydronic system fundamentals

  • Open vs. closed systems
  • System pressure, fluid quality, and pumping implications

Loop design and distribution

  • Supply/return loops
  • Direct piping concepts
  • Reverse return systems and self-balancing behavior

Hydraulic separation and pumping strategy

  • Hydraulic separation principles
  • Buffer tank separation method
  • Pumping circuit independence and circulation behavior

Flow control and efficiency

  • Variable flow vs. constant speed systems
  • Minimum flow requirements
  • Energy and control implications of pumping strategy

Advanced circuit behavior

  • Primary / secondary / tertiary circuits
  • Common pipe fundamentals
  • Backflow conditions
  • Bypass flow impact on cooling coil performance

From the deck

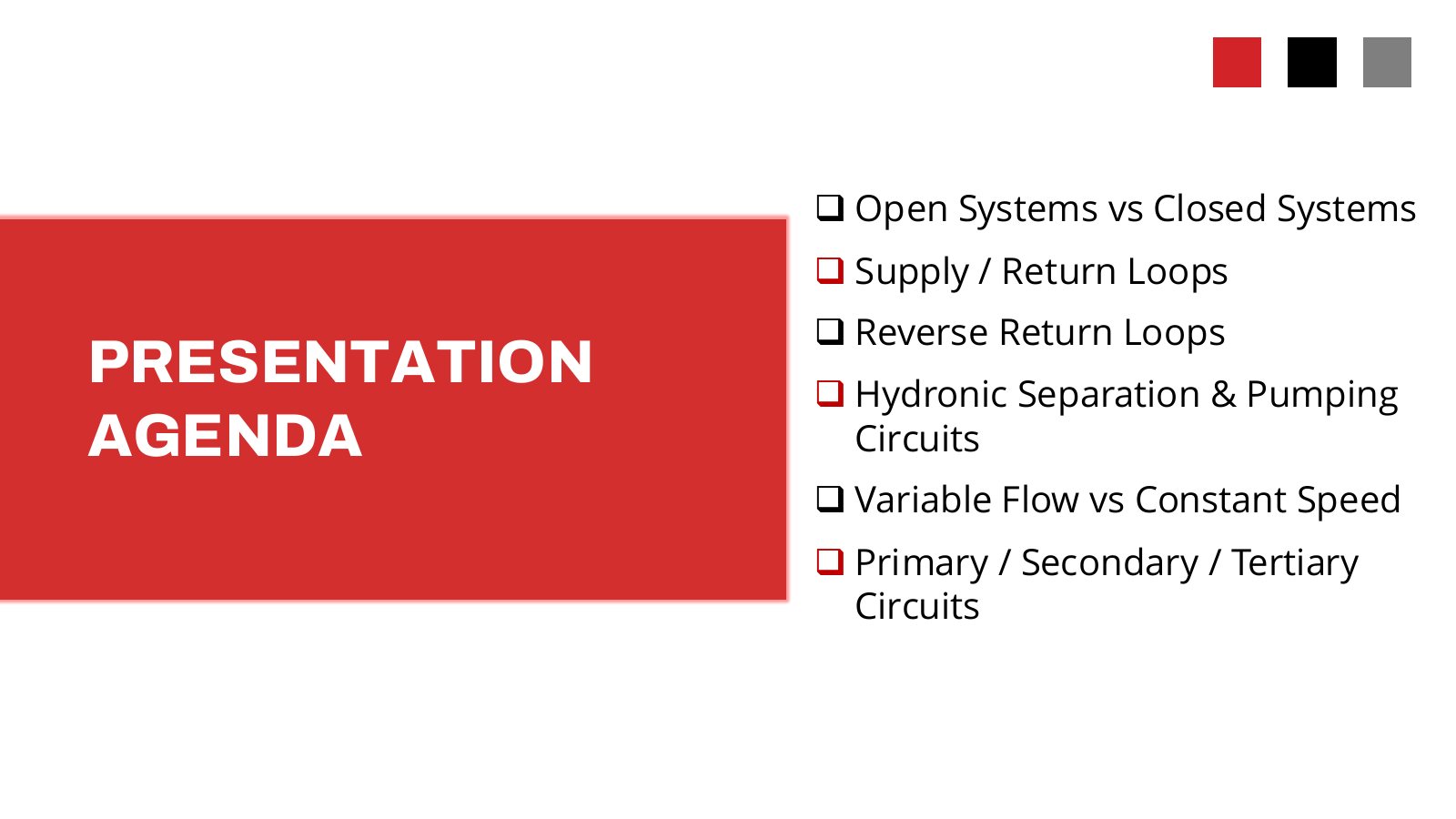

Presentation agenda slide
Agenda

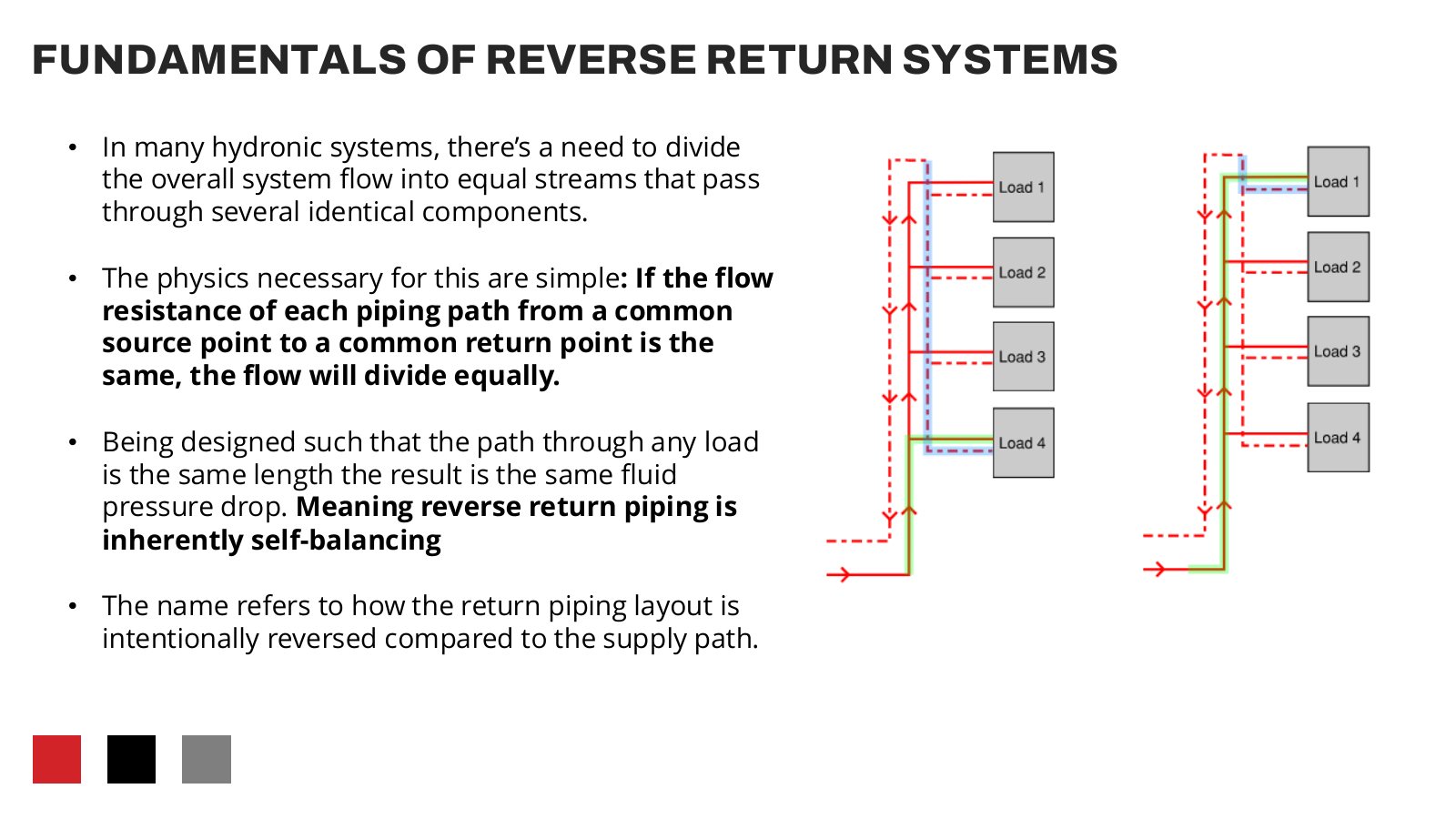

Slide explaining reverse return piping and why it is self-balancing
Reverse return: equal path lengths give equal pressure drop, so the loop balances itself

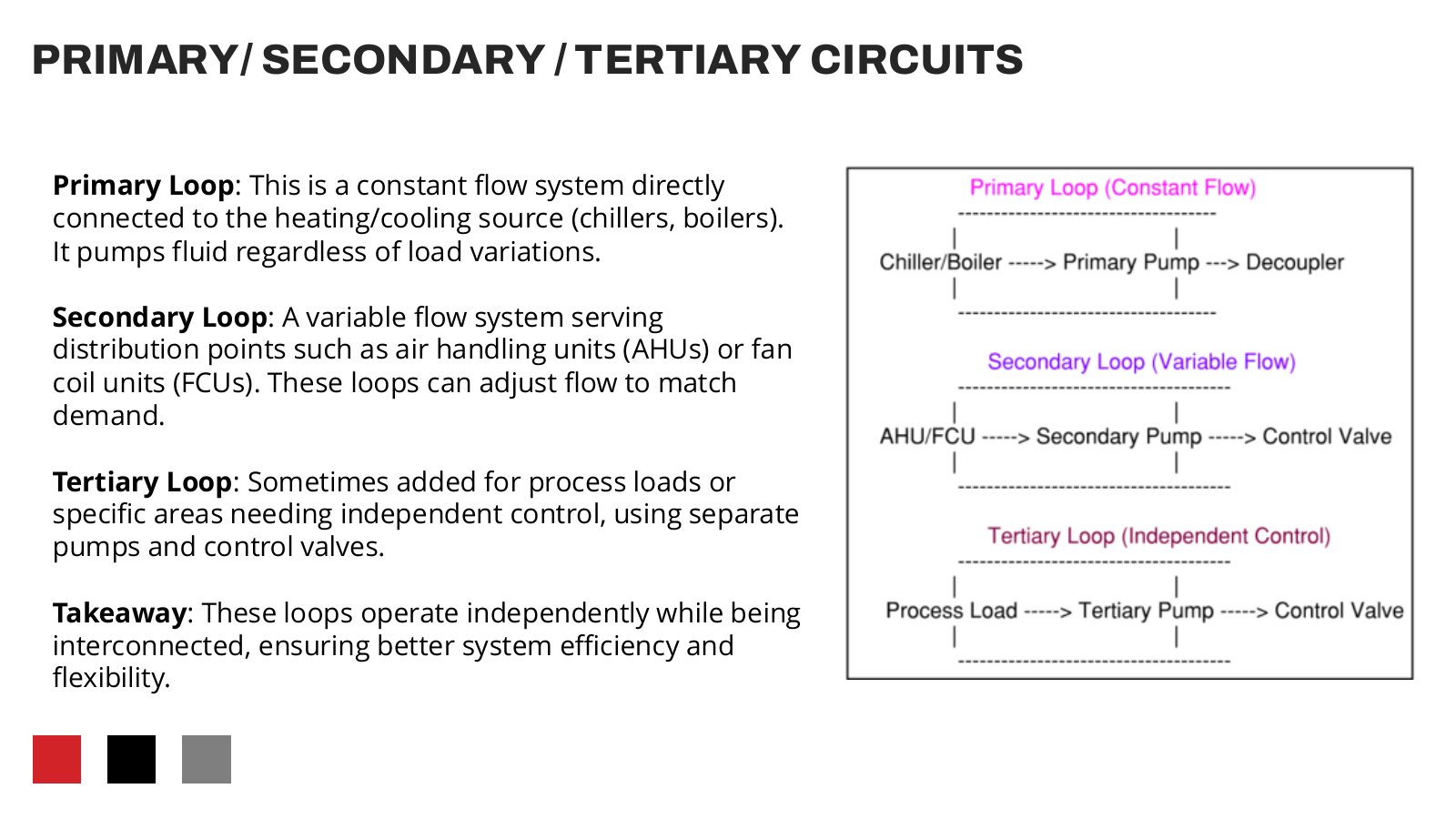

Slide on primary, secondary and tertiary circuits
Primary / secondary / tertiary circuits

Outcome

Strengthened internal technical knowledge-sharing while building my own ability to communicate mechanical design concepts clearly across multidisciplinary teams.
